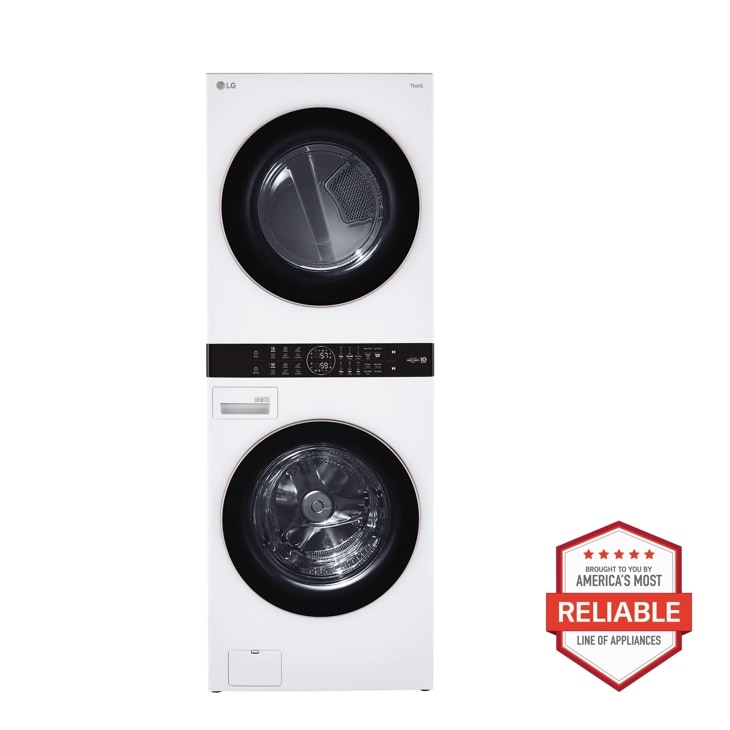

Single Unit Front Load LG WashTower™ with Center Control™ 4.5 cu. ft. Washer and 7.4 cu. ft. Gas Dryer

Single Unit Front Load LG WashTowerTM with Center ControlTM 4.5 cu. ft. Washer and 7.4 cu. ft. Gas Dryer Specifications: Energy

• CEE Tier: Tier 2
• CEF: 3.49
• ENERGY STAR® Certified: Yes
• IMEF: 2.92
• IWF: 2.9

Washer Programs

• No. of Washer Programs: 6
• Water Levels: Load Sensing
• No. of Wash/Rinse Temps: 5
• Spin Speeds: High, Low, Medium, Medium / High, No Spin
• Washer Programs: Bedding, Delicates, Downloaded, Heavy Duty, Normal, Speed Wash
• Wash/Rinse Temps: Cold, Cool, Hot, Very Warm, Warm
• Washer Options: Sanitary, Signal, Control Lock, Tub Clean, Wi-Fi / Remote Start, Delay wash, Extra Rinse, Pre-wash, Steam
• No. of Spin Speeds: 5
• No. of Washer Options: 9
• No. of Soil Levels: 5

Laundry Appliance Capacity

• Dryer Capacity: 7.4 cu.ft.
• Washer Capacity: 4.5 cu.ft.

Materials and Finishes

• Door Cover: Tinted Round Tempered Glass
• Cabinet: Painted Steel
• Door / Rim: Large Circle Shiny Rose Gold Rim
• Control Panel: Plastic
• Top Plate: Steel
• All Available Colors: Graphite Steel (V), White (W)
• Aluminized Alloy Steel Drum: Yes
• NeveRustTM Stainless Steel Drum: Yes

Options/Accessories

• LP Conversion Kit: 383EEL3002D
• Side Venting Kit: 3911EZ9131X

Fabric Care Features

• AI DD®: Yes
• Steam Technology: Yes
• AI Sensor DryTM: Yes
• AllergieneTM Cycle: Yes
• Sensor Dry: Yes
• Sanitary Cycle: Yes
• Precise Temperature Control with Variable Heater: Yes

Motor

• Axis: Horizontal
• Motor Type: Inverter Direct Drive Motor
• Max RPM: 1300

Power Source

• Washer Electrical Requirements: 120V, 10 Amps
• Dryer BTU Rating: 20000
• Dryer Electrical Requirements: 120V, 10 Amps
• Washer Power Source Type: Electric
• Dryer Power Source Type: Gas
• Ratings: CSA Listed

Laundry Appliance ThinQ® Smart Features

• Smart Pairing: Yes
• SmartDiagnosisTM (v3.0): Yes
• Tub Clean Coach: Yes
• ThinQ CareTM: Yes
• Remote Start and Cycle Monitor: Yes
• Wifi: Yes
• Energy Monitoring: Yes
• ThinQ® Smart Technology: Yes

Laundry Appliance Convenience Features

• Vent Type: Vented
• Venting Option: 2 Way Venting
• 4 Tray Dispenser: Prewash, Main Wash (with liquid detergent cup), Bleach, Fabric Softener
• Leveling Legs: Yes
• True Balance® Anti-Vibration System: Yes
• 4 Adjustable Legs: Yes
• 3 Minute Installation Check: Yes
• FlowSenseTM Duct Clogging Indicator: Yes
• LoadSense: Yes
• Remaining Time Display/Status Indicator(s): Yes
• Internal Water Heater: Yes
• Wrinkle Care Option: Yes
• Control Lock: Yes
• End of Cycle Signal: Yes
• Auto Suds Removal: Yes
• Reversible Door: No
• Drum Light: Yes
• Cabinet Vibration Sensor: Yes

Certification

• AAFA: Yes

Dimensions

• Carton (WxHxD): 30 1/16" x 79 11/32" x 32"
• Depth with Door Open: 55"
• Weight (Product/Carton): 311 lbs / 346 lbs
• Product (WxHxD): 27" x 74 3/8" x 30 3/8"

Warranty & UPC

• Direct Drive Motor: 10 Years
• Drum: 3 Years
• Parts and Labor: 1 Year
• UPC: 048231029384

Summary

• Series: WashTowerTM
• Product Color: White (W)
• Gas Dryer Option: WKG101HWA
• Type: Single Unit Front Load Washer and Dryer
• Electric Dryer Option: WKE100HWA
• Delay Wash: Yes
• Full Touch Electronic Control Panel with LED Display: Yes
• Center Control®: Yes
• Touch Buttons: Yes

Dryer Programs

• Manual Dry Times: 60 min., 50 min., 40 min., 30 min., 20 min.
• Temperature Settings: High, Low, Low/Medium, Medium, Medium High
• Drying Levels: Damp, Less, More, Normal, Very
• Dryer Options: Control Lock, Less Time, More Time, Wi-Fi / Remote Start, Energy Saver, Signal, Wrinkle Care
• Dryer Programs: Bedding, Delicates, Downloaded, Heavy Duty, Normal, Small Load
• No. of Dryer Options: 7
• No. of Dryer Programs: 6
