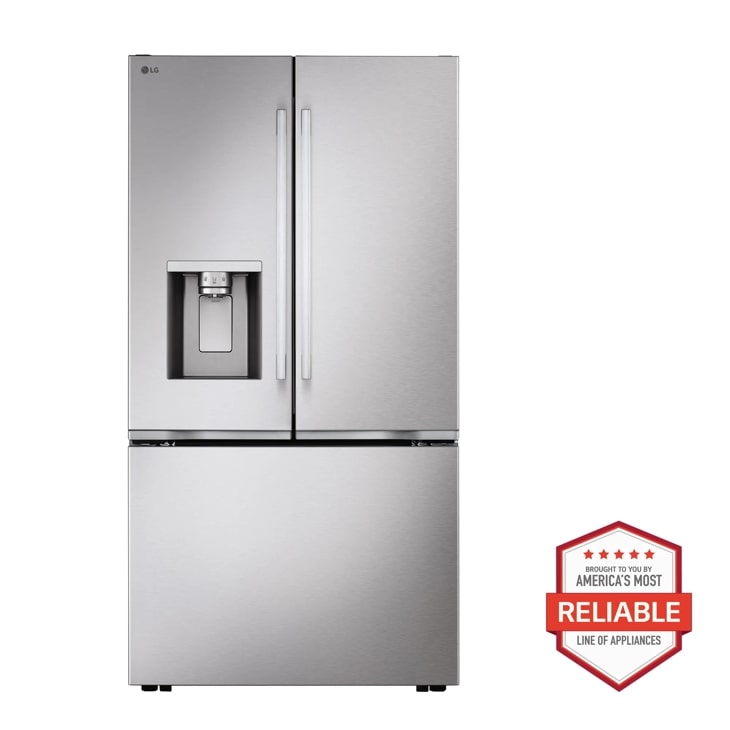

LG Counter-Depth MAX™ with Zero Clearance™ 3-Door French Door Refrigerator with Thin Door Design

LG Counter-Depth MAX™ with Zero Clearance™ 3-Door French Door Refrigerator with Thin Door Design Specifications:

Summary

• Display Type: Smooth Touch Control / White LED

Refrigerator ThinQ® Smart Features

• ThinQ Care™: Yes
• SmartDiagnosis™: Yes
• ThinQ® Smart Technology: Yes
• wi-fi Enabled: Yes

Water & Ice System

• Water Filtration System: 1 Stage
• Dispenser Type: Ice & water
• Ice Storage Capacity (lbs): 3.0 lbs
• Ice System: IcePlus™
• Water Filter: LT1000P
• Freezer Ice Maker Ice Type: Craft Ice
• In-Door Ice Maker Ice Type: Cubed / Crushed
• Dispenser Light: No
• Freezer Ice Maker Daily Production: 0.7 lbs

Energy

• Energy Consumption (kWh/Year): 699
• ENERGY STAR® Qualified: Yes

Cooling

• Evaporator: 1
• Compressor Type: Smart Inverter Compressor
• Refrigerant: Low GWP, Zero ODP and More Energy Efficient Refrigerant (R600a / 78g / 2.7502)
• Temperature Sensors: 2
• Multi-Air Flow™ System: Yes
• Fresh Air Filter: Yes

Freezer

• Drawers/Shelves: 2-Tier Organization
• Freezer Handle: Pocket Handle
• Freezer Light: LED Lighting
• Door Type: Hybrid
• Drawer Divider: No

Limited Warranty & UPC

• Inverter Compressor (Parts Only): 6 - 10 Years
• Parts & Labor: 1 Year
• Compressor (Parts & Labor): 5 Years
• Sealed System (Parts & Labor): 5 Years
• UPC: 195174092453

Capacity

• Refrigerator (cu.ft.): 15.8 cu.ft.
• Total Capacity (cu.ft.): 23.7 cu.ft.
• Freezer (cu.ft.): 7.9 cu.ft.

Convenience

• Temperature Controls: Electronic/Digital
• Auto Closing Door Hinge: Yes
• Door Alarm: Yes
• ADA Compliant: Yes
• Sabbath Mode: Yes

Materials and Finishes

• All Available Colors: PrintProof™ Stainless Steel
• Insulation: Low GWP and Zero ODP Blowing Agent
• Hidden Hinges: Yes

Refrigerator

• No. of Door Bins: 2 Left, 3 Right
• Shelf Construction: Spill protector Tempered glass
• Handle Type: Bar
• No. of Shelves: 4 Split (4 Fixed)
• Crisper Bins: 2
• Cool Guard: Yes

Dimensions/Clearances/Weights

• Carton Dimensions (WxHxD): 38" x 73" x 30"
• Weight (Unit/Carton): 261lbs / 281lbs
• Installation Clearance: Sides 5/32", Top 1", Back 2"
• Dimensions (W case x H top of hinge x D with handles): 35 3/4" x 70 1/4" x 29 7/8"
• Width (Door Open 90 ̊ without Handle): 35.12"
• Depth without Door: 24.75"
• Depth (Total with Door Open): 43.75"
• Width (Door Fully Open without Handle): 45.5"
• Door Edge Clearance without Handle: 0"
• Depth with Handles: 29.87"
• Height to Top of Case: 68.87"
• Case Edge Clearance (Door Fully Open): 13.87"
• Depth without Handles: 27.5"
• Width: 35.75"
• Depth (Draw Open Fully without Handle): 73.87"
• Height to Top of Door Hinge: 70.25"
• Width (Door Open 90 ̊ with Handle): 40"
• Depth (to Hinge Cover): 18.25"
