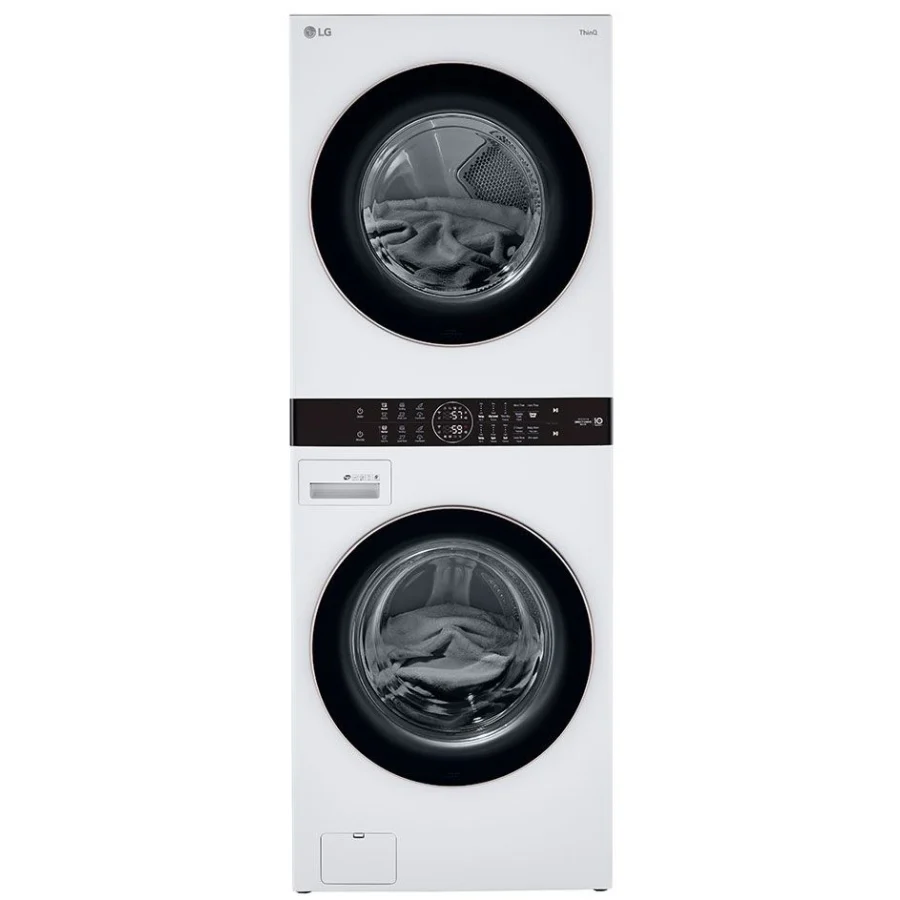

Single Unit Front Load LG WashTower™ with Center Control™ 4.5 cu. ft. Washer and 7.4 cu. ft. Electric Dryer

Single Unit Front Load LG WashTowerTM with Center ControlTM 4.5 cu. ft. Washer and 7.4 cu. ft. Electric Dryer Specifications: CAPACITY

• Capacity: Washer 4.5 cu. ft./Dryer 7.4 cu. ft.

CERTIFICATION

• AAFA: Yes

CONVENIENCE FEATURES

• 3 Minute Installation Check: Yes
• 4 Adjustable Legs: Yes
• 4 Tray Dispenser: Prewash, Main Wash (with liquid detergent cup), Bleach, Fabric Softener
• Auto Suds Removal: Yes
• Child Lock: Yes
• Drum Light: Yes
• End of Cycle Signal: Yes
• FlowSenseTM Duct Clogging Indicator: Yes
• Leveling Legs: Yes
• LoadSense: Yes
• Status Indicator(s): Yes
• TrueBalanceTM Anti-Vibration System: Yes
• Venting Option: 3 Way Venting
• Wrinkle Care Option: Yes

DIMENSIONS

• Carton (WxHxD): 30 1/16" x 79 11/32" x 32" (763 mm x 2015 mm x 813 mm)
• Depth with Door Open: (55" D with door open)
• Product (WxHxD): 27" x 74 3/8" x 30 3/8" (700 mm x 1890 mm x 770 mm)
• Weight (Product/Carton): 311 lbs / 346 lbs

ENERGY

• CEE Tier: Tier 2
• CEF: 3.94
• ENERGY STAR® Qualified: Yes
• IMEF: 2.92
• IWF: 2.9

FABRIC CARE FEATURES

• AI DDTM: Yes
• AI Sensor DryTM: Yes
• AllergieneTM Cycle: Yes
• Precise Temperature Control with Variable Heater: Yes
• Sanitary Cycle: Yes
• Sensor Dry: Yes
• Steam Technology: Yes

MATERIALS AND FINISHES

• All Available Colors: White (W)
• Aluminized Alloy Steel Drum: Yes
• Cabinet: Painted Steel
• Control Panel: Plastic
• Door / Rim: Large Circle Shiny Rose Gold Rim
• Door Cover: Tinted Round Tempered Glass
• NeveRustTM Stainless Steel Drum: Yes
• Top Plate: Steel

MOTOR AND AGITATOR

• Axis: Horizontal
• Max RPM: 1300

MOTOR & AGITATOR

• Motor Type: Inverter Direct Drive Motor

OPTIONS/ACCESSORIES

• LP Conversion Kit: 383EEL3002D
• Side Venting Kit: 3911EZ9131X

POWER SOURCE

• Electrical Requirements: 120V, 10 Amps
• Ratings: CSA Listed
• Type: Electric

PROGRAMS

• Dry Programs: Manual Times Dry: 60 min., 50 min., 40 min., 30 min., 20 min.
• Drying Levels: Damp, Less, More, Normal, Very
• No. of Dryer Programs: 6
• No. of Soil Level: 5
• No. of Spin Speeds: 5
• No. of Wash/Rinse Temps: 5
• Options: Bedding, Delicates, Downloaded, Heavy Duty, Normal, Small Load, Speed Wash
• Temperature Settings: High, Low, Low/Medium, Medium, Medium/High
• Spin Speeds: High, Low, Medium, Medium / High, No Spin
• Wash/Rinse Temps: Cold, Cold / Warm, Hot, Warm, Warm / Hot
• Water Levels: Load Sensing

WASH PROGRAMS

• No. of Programs: 6

SUMMARY

• Full Touch Electronic Control Panel with LED Display: Yes
• Matching Electric Dryer: WKE100HWA
• Matching Gas Dryer: WKG101HWA
• Series: Wash Tower
• Touch Buttons: Yes
• Type: F/Loader, F/Loader Dryer
• Unified Center Control: Yes

THINQ® TECHNOLOGY

• Energy Monitoring: Yes
• Remote Start and Cycle Monitor: Yes
• SmartDiagnosisTM (v3.0): Yes
• Tub Clean Coach: Yes
• Wifi: Yes

LIMITED WARRANTY

• Direct Drive Motor: 10 Years

WARRANTY & UPC

• Drum: 3 Years
• Parts and Labor: 1 Year
• UPC: 048231029360
